Description
X-BULL has been designing its own unique winches in recent years, not only to gain customers' recognition in the quality of winches, but also to allow them to get the favorite and distinctive winches. We have noticed that many customers have trouble with the installation of winch, therefore, we developed this one-piece winch that is easy to install.

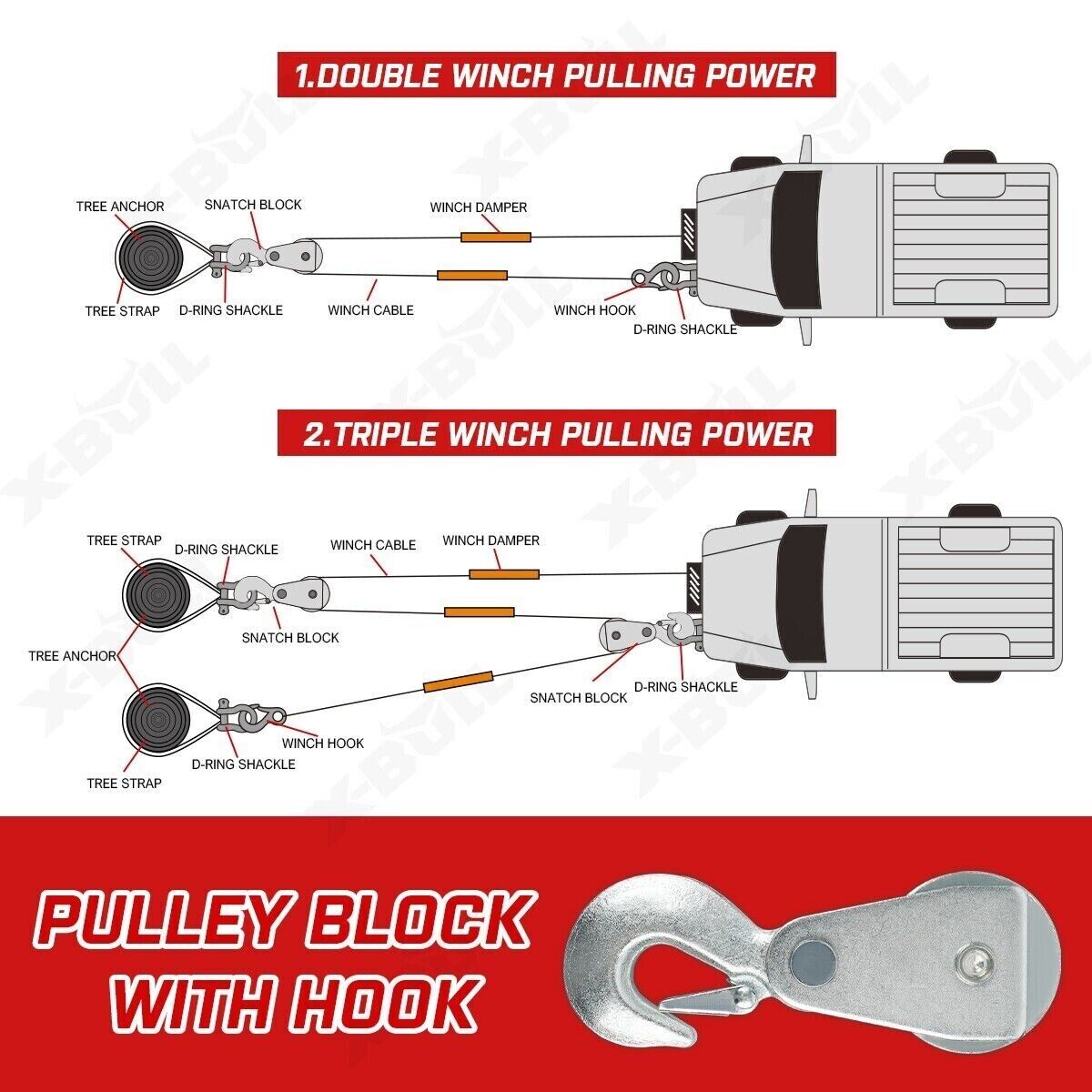

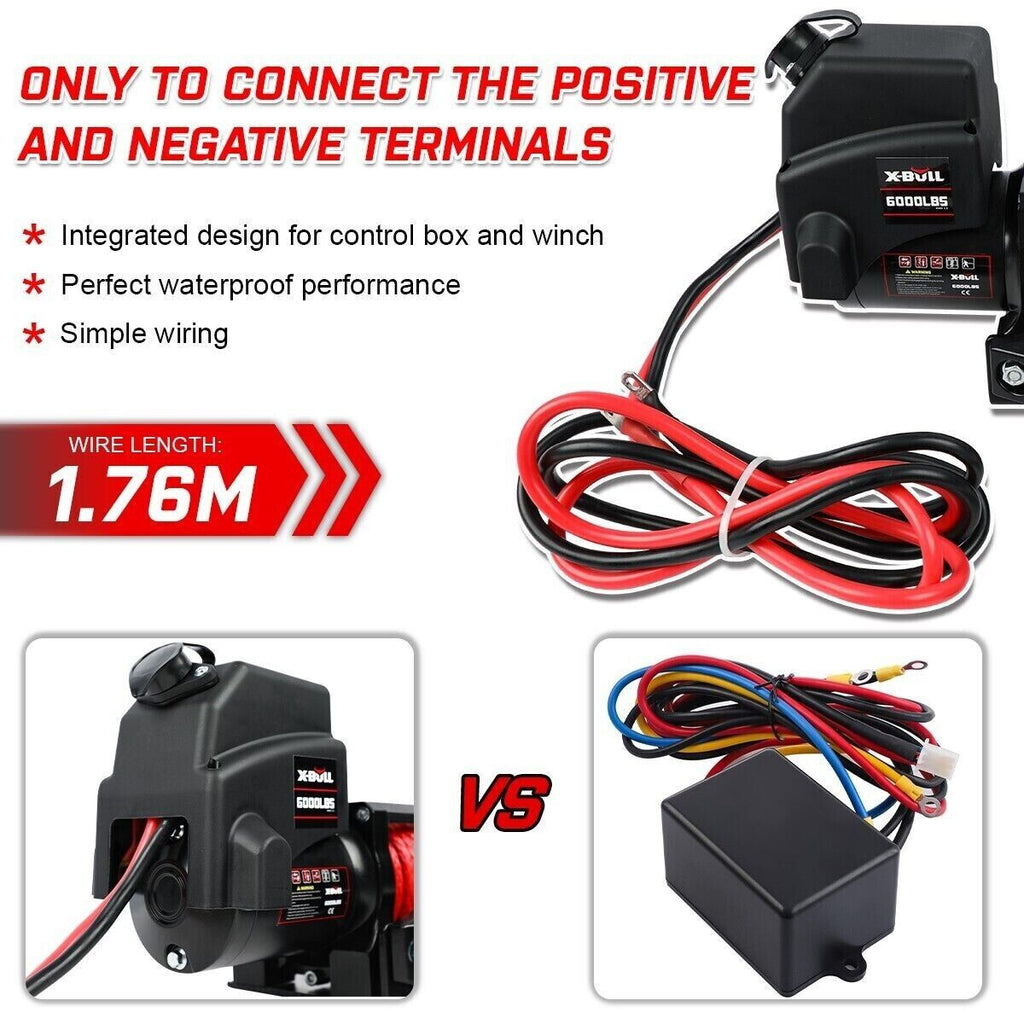

To operating this winch, you only need to connect two positive and negative wires. Even though if you know nothing about the winch before, you can easily use it. Considering that some of our customers have the need to lift items or pull heavier and larger items, we have added a movable pulley hook to this winch, which allows you to achieve a variety of work uses with only one winch.

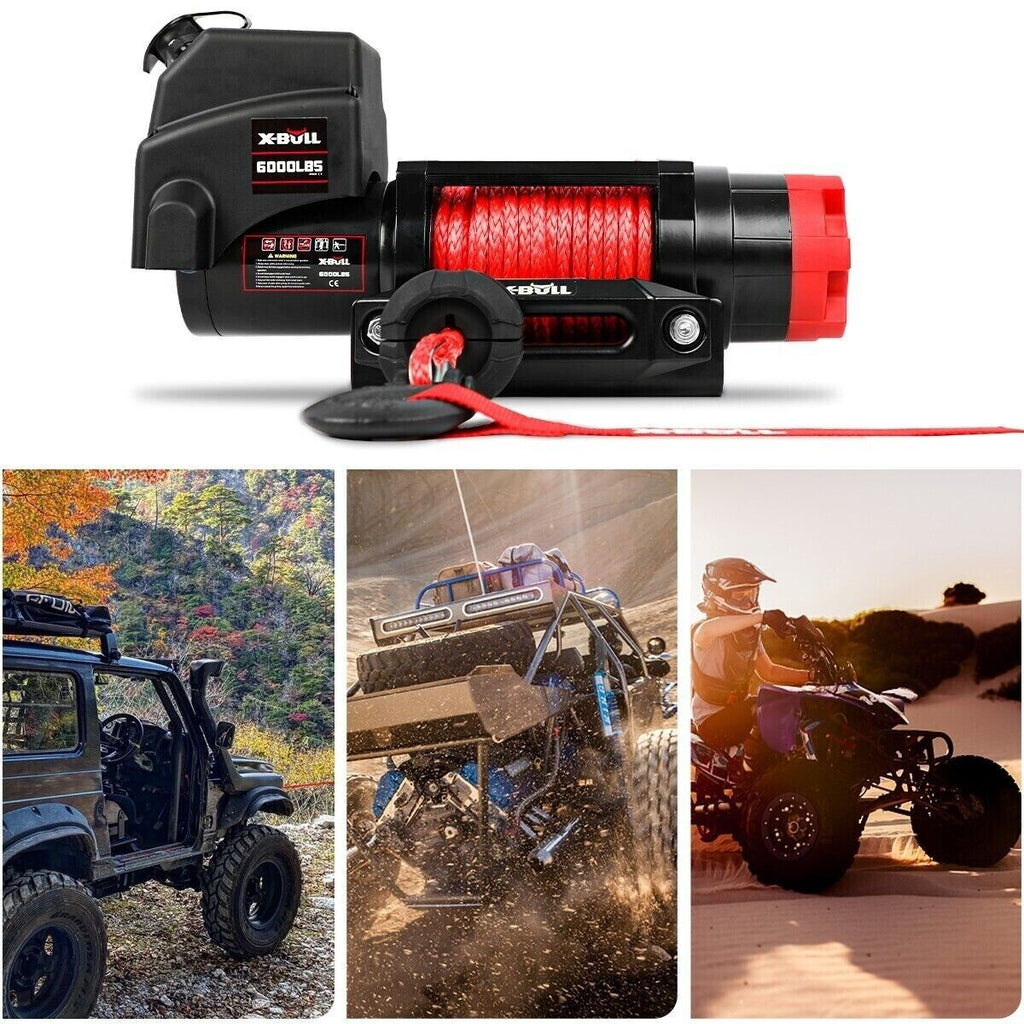

Suitable for a variety of models including ATVs, UTVs, SUVs, boats, cranes, etc.
- Integrated design for control box and winch
- Perfect waterproof performance
- simple wiring
- convenient and flexible
- High magnetic inductive melting point
- high temperature resistance
- strong power and safe work
- High efficiency

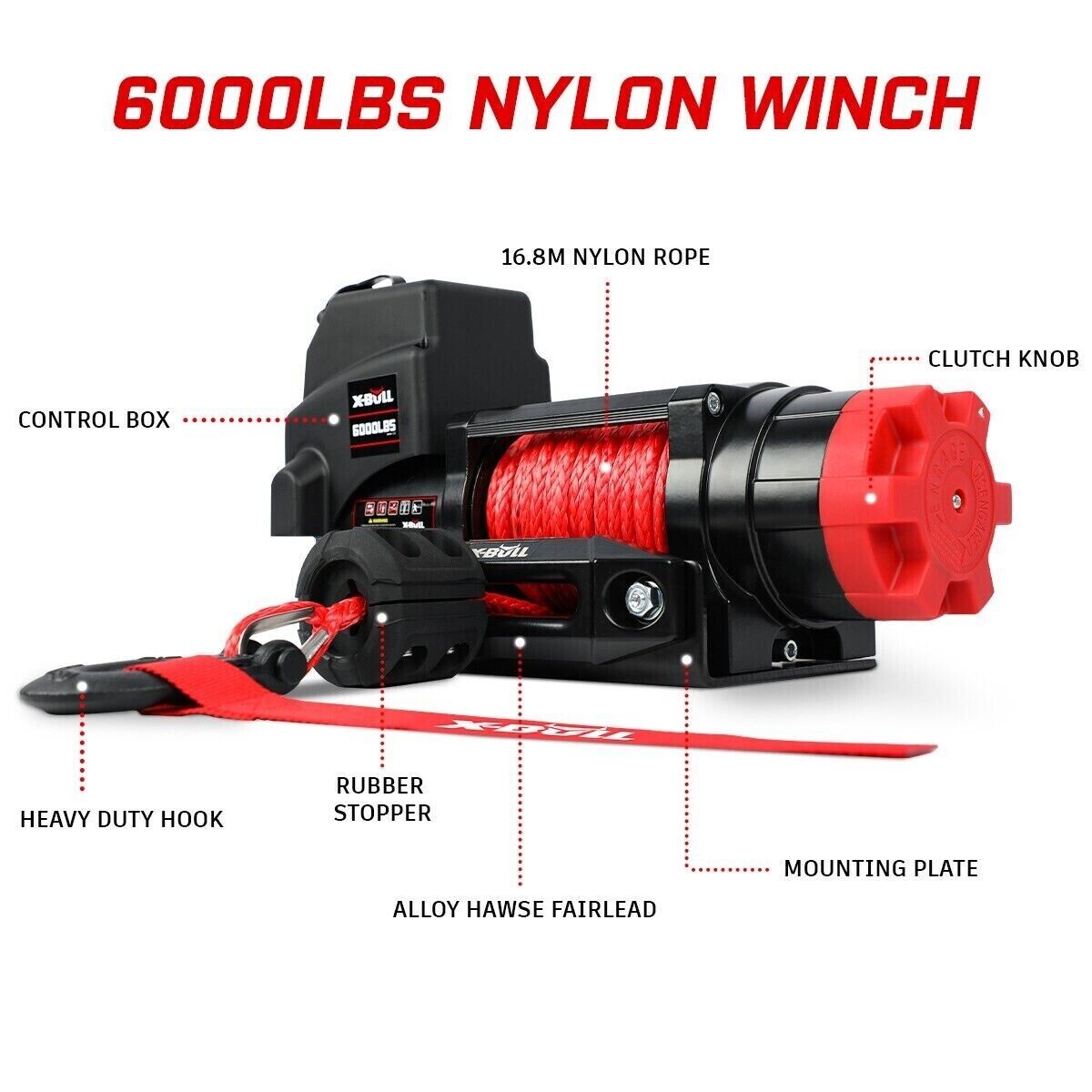

| Brand | X-BULL |
| Color | Multicolred |
| Part Number | 6000LB |
| Rated Line Pull | 6,000 lbs., 2,722 kg. |
| Motor - Series Wound | Permanent Magnet 1.9HP 12V DC |

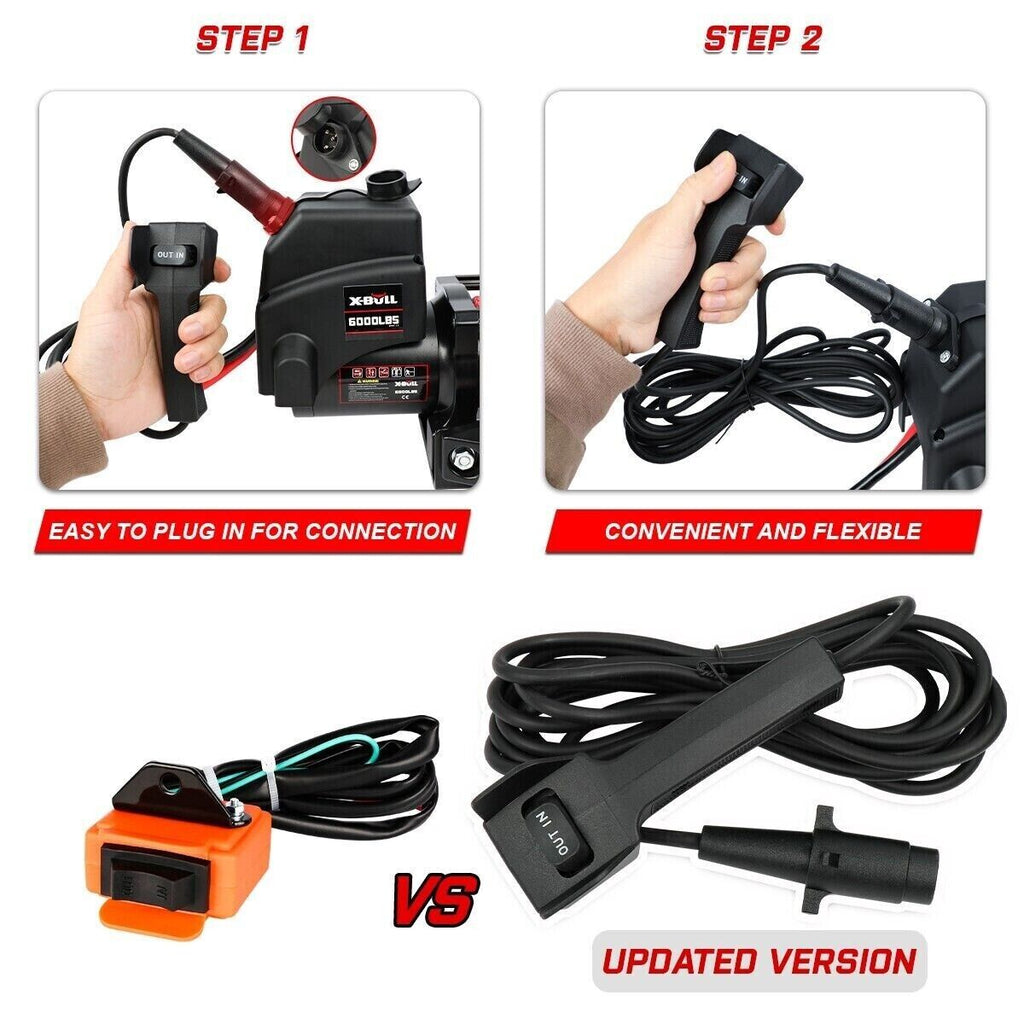

| Control | Hand Held Remote on 12’ lead |
| Switching | High Duty cycle Sealed Solenoid Pack |
| Gear Train | High Efficiency 3-Stage Planetary Gear Set |
| Gear Reduction | 226:1 |
| Clutch (Freespooling) | Cam Activated |
| Brake | Mechanical Automatic |
| Synthetic Rope | 55’ (16.8 m) of 1/4” (6.3 mm) Diameter Synthetic Rope |
| Fairleads | Alloy Hawse Fairlead |
| Battery Leads | 6 Gauge, 72” (1.83 m) |
| Battery | Minimum 650 CCA |
| Application | General Utility Load Recovery/Trailer, Truck, Tractor, Equipment |
| Finish | High-Gloss gray Powder Coat over Undercoating |
| Weight | 41 lbs. / 18.6 kg |
